Product Description

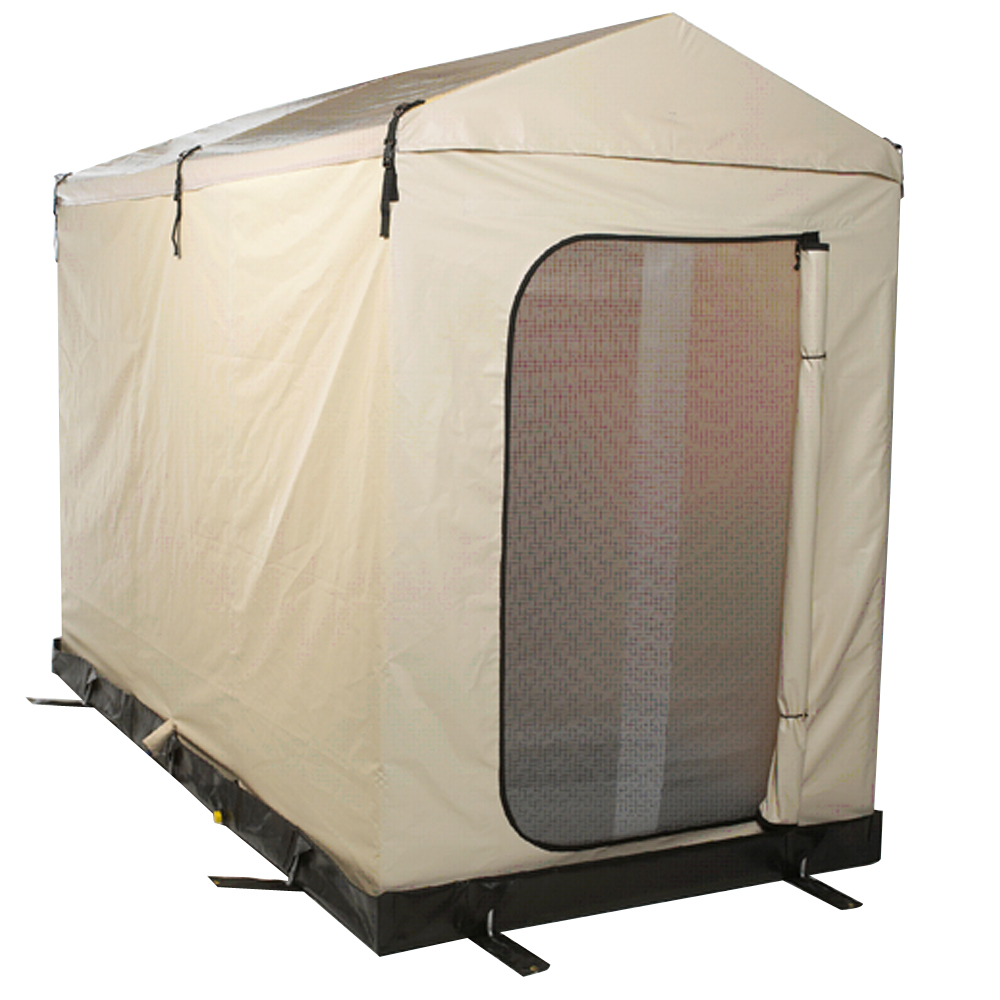

The WS510 Decontamination Shower comes with privacy curtain for entrance and exit, and two center section walls with privacy curtains to separate shower from undress and redress sections.
Features:
- Shower frame with roof trusses
- 5’x10’x6″ three-compartment, freestanding flexible fabric primary containment pool with ¾” GHT drain fittings in the center shower compartment
- Complete fabric frame cover with zippered entrance/exit doors and removable privacy curtains.
- Six stainless steel, horizontal and vertical .75 GPM low volume nozzles. One .75 GPM hand held, pistol grip sprayer
- Supply side pigtail with master shut-off
- Rugged, heavy duty, zippered carry bag
- Optional 3’x3’ elevated flexible matting
- Optional 110V eclectic pump kit with protective case.
Specifications:
- Weight: 156 lbs. (All components in carry bag.)
- Packaged dimensions: 2 bags at 64″ x 14″ x 21″
- Articulated mainframe and roof truss: constructed of bright plated, thin wall steel with yellow powder coated finish
- Set up time: 4 – 6 minutes or less
- Inside wash down area assembled: 42″ long x 60″ wide x 84″ high
- Inside “undress” area assembled: 42″long x 60″ wide x 84″ high
- Inside “redress” area assembled: 42″ long x 60″ wide x 84″ high
- Nozzles: six primary nozzles
- Nozzles: one hand-held nozzle
- 4 GPM (gallons per minute) @ 50 PSI
- 5.5 GPM (gallons per minute) @75 PSI
- Primary containment basin: freestanding flexible fabric
- Frame cover: 14 oz. reinforced vinyl
- Roof cover: 14 oz. reinforced vinyl semi-clear skylight
- Cover color: Desert Sand
